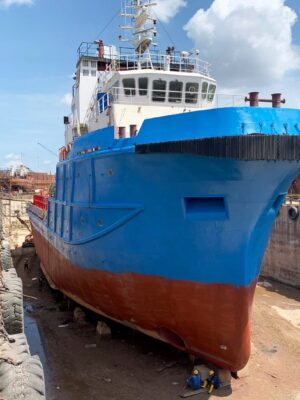

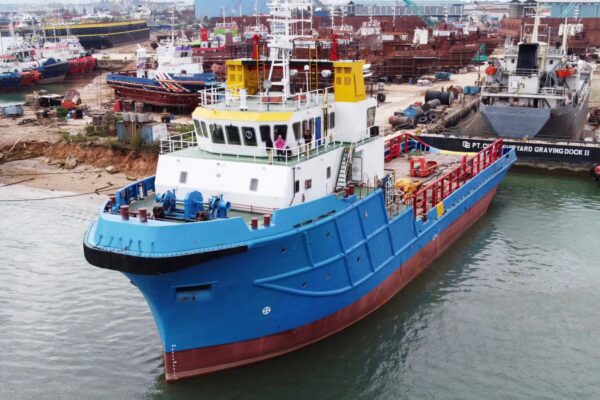

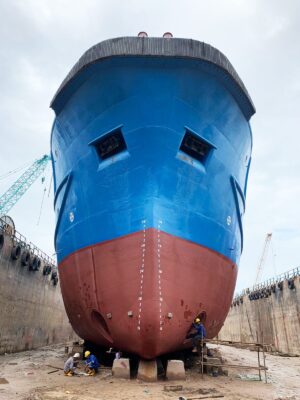

For Sale : AHTS 4750 HP (IACS Class Member | BP. 61,73 T | YOB.2005)
| Principal Particular |
| Registry |
Batam |
| Call Sign |
TBN |
| Official No. |
330505 |
| Year Built |
2005 |
| Class |
RINA |
| Notation |
A1, Towing Vessel, Offshore Support Vessel, (E), * AMS |
| Type |
AHTSV |
| Class No. |
97073 |
| IMO No. |
TBN |
| Hull No. |
HY2127 |
| Flag |
Indonesia |
|
|
| Dimension |
| Length Overall |
60.00m |
| Length Waterline |
56.75 m |
| Breadth Moulded |
13.30 m |
| Depth Moulded |
6.00 m |
| Draft Moulded |
4.70m |
| GRT |
1443 MT |
| NRT |
433 MT |
| Deadweight |
1256 MT @4.7 m draft |
|
|
| Performance |
| Maximum speed |
13.5 knots @ 11 MT /24 hr |
| Economicai speed |
10 knots @8 MT/24 hr |
| Type of fuel |
Marine Gas Oil |
| Cargo capacities |
| Deck Cargo |
450 MT |
| Deck Strength |
5.0 MT/m² |
| Clear Deck Area |
376 m² |
| Fuel Oil |
537 m³ |
| Fresh Water |
403 m³ |
| Ballast/Drill Water |
624m³ |
| Freezer/Chller |
10 m/ 10 m³ |
| Foam |
15m³ |
| Detergent |
14m³ |
|
|
| Propulsion system |
| Main Engine |
2 x Caterpillar 3516 BTA @ 2375 BHP |
| Main Generator |
3 x Caterpllar 3408C @ 315 kW |
| Emergency Genset |
1×40 kW/ 415 V/ 3 phase/50Hz |
| Bow Thruster |
1x5MT thrust |
| Steering Gear |
electro-hydraulic type with twin screw arrangement |
| Propulsion |
2 x CPP Type with Kort Nozzle |
| Rudders |
2x Conventional Rudder |
|
|
| Deck Equipment |
| Windlass |
1x electro-hyd for 34 mmi rated 5 MT 15 m/min |
| Bow Anchors |
2 x 1080 kg High Hold Type Bow Anchor |
| Chains |
412.5 m x 34 mm 0 port & stbd |
| Capstan |
2 x 5 MT @ 15 m/min |
| Tugger Winch |
2x5MT@ 15 m/min |
|
|
| Fire Fighiting Equipment |
| External |
| FiFI |
Class ½ % FiFi |
| Fire pump |
1 x 1200 m³/hr at 14 bar |
| Fire monitor |
2 x 600 m³/hr at 10 bar |
| Internal |
| Fixed System in E/R |
CO2 system in engine room |
| Fire Detection System |
All living space and engine room |
|
|
| Others |
| Rescue Zone |
Port & Std side |
| Oily Water Separator |
1 x 0.5 m³/ hr (MARPOL Standard) |
| Sewerage Treatment Plant |
1 x 40 men/ day |
|
|
| Towing Equipment |
| Bollard Pull |
61.73 MT |
| Towing Winch |
1 x electro-hyd single drum water fall Æ 50 mm x 1000 m |
| Braking Holding |
150 MT |
| Stern Roller |
Æ 1.6 m x 3.5 m length, SWL 150 MT |
|
|
| Discharge Rates |
| Fuel Oil |
1 x50 m³/hr @ 70m head |
| Fresh Water |
1 x 50 m³/hr@ 70m head |
| Drill Water Pump |
1 x50 m³hr @ 70m head |
|
|
| Navigational / Communication |
| GMDSS |
Area A1+A2+A3 |
| Rack Console Sys |
1 x Furuno RT-1800 T250 W comprising |
| SSB |
Furuno FS 1562-25 250 W |
| GPS Navigator |
1 x Furuno GP-80 MK 2 |
| SART |
2 x Mc Murdo RT9, 9 GHz |
| Inmarsat C |
Felcom 15 |
| Satellite EPRIB |
1 x Mc Murdo E3 |
| VHF Radio |
2 x Furuno FM 8500, 25 W |
| Portable VHF Radio |
3 x McMurdo R2 Portable GMDSS Radio |
| Navtex Receiver |
1 x Furuno NX-500, 518 kH//z |
| X-Band Radar |
1x Furuno- FR 1942 MK-2 |
| Sat Com |
1x Furuno- FR 2115 |
| Echo Sounder |
1 x Furuno FE 700 |
| Gyrocompass |
1 x Robertson AP9-MK3 |
| Autopilot |
1 x Robertson AP9-MK3 |
| Weather Fax |
1 x Furuno Fax-207 |
| Speed Log |
1 x Furuno DS-80 |
| Magnetic Compass |
1 x Saura MR-150A |
|
|
| Accommodations |
| Berths |
4 x 1 berth cabin=6 |
| 2×2 berth cabins= 4 |
| 8 x 4 berth cabins =32 |
| Total |
40 |
| All cabins are fully air-conditioned |
|
|
| Life Saving Appliance |
| Search Lights |
3 x 2000 W |
| Floodlights |
5 x 1000 W |
| Liferafts |
4 x 25 men |
| Lifebuoys |
8 pcs with buoy lights |
| Life jackets |
50 pcs |
| Rescue boat |
1 x 6 men with OBM |
| EEBD |
7 sets |
