FOR SALE TUG BOAT – 2×1600 HP + BARGE – 330 FT – YOB.2008

TUG BOAT

Name Of Vessel : TBN 1
Type Of Vessel : TUG BOAT
Classification : RINA
Flag : Singapore
YOB : 2008
LOA : 29.61 M
Breadth Moulded : 29.61 M
Depth Moulded : 4.2 M
Estimated Speed : 12 KNOTS
GRT/NRT : 299/90 T
M/E : 2×1600 HP, CUMMINS KTA50-M2, TWINDISC MG-5506
Anchor Windlass : 22 MM Electro Hydraulic c/w Double Gypsy & Double Bottom
Towing Hook : 40 Tons SWL Towing Hook
Anchor : 2×570 KGS, Stocless Bower Anchor
Anchor Chain Cable : 11 Shackles of 22 MM Diameter Stud Link Cable
Towing Winch : Capacity: 40/10 Tons, Power: 70 HP, Speed: 8.8 RPM

Propellers
Material: Manganese Bronze
Diamter : 2400 MM | Pitch : 1524 MM | Blade : 4
Generators : 2×97.5 KVA, Cummins 6BT5.9.(D)M, Stamford UC.M274E1
Harbour Generator : 1×62.5 KVA, Yanmar 4TNE 106-G1A, Meccalte ECO32-3L/4

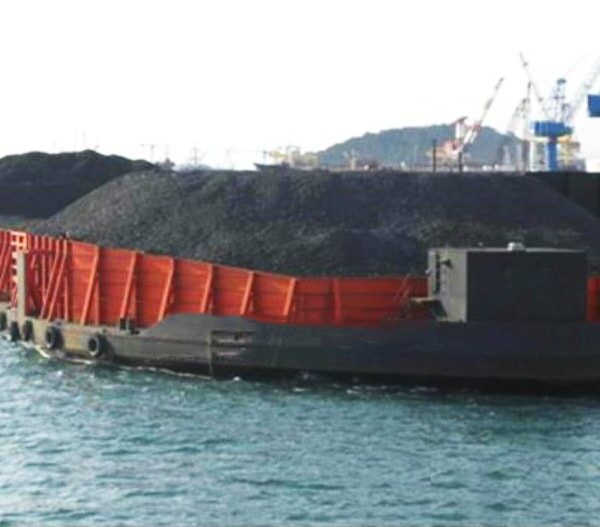

BARGE

Name of Vessel : TBN 2
Managers : TBN
Type of Vessel : Steel Flat Top Deck Cargo Barge
Year of Built : 2008
Flag/Port Of Registry : Singapore
Classification : Rina
Pni Club : Shipowners PNI Club, UK(SOP)
Grt/Nrt : 4241/1273 T
Dwt : 9,900 Mt
Loa : 100.584 Meters (330 FT)
Breadth : 27.432 Meters (90 FT )
Draft : 5.089 Meters (21 FT )
Deck Equipments :
– 1×2 Tons Anchor
– 1 Set Hydraulic Motor Winch
Side Board Height : 12 Ft
