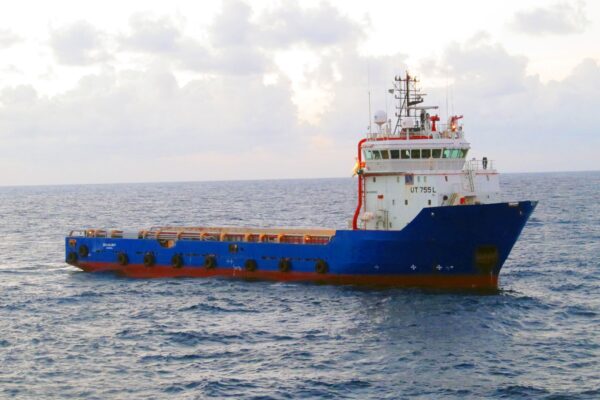

DEEP SEA SUPPLY TBN 2
SPECIFICATION
MAIN DESCRIPTION
Type : UT 755 L
Classification : DNV, +1A1, SF Clean DPS2, FiFi 1
Yard : Cochin Shipyard Ltd
Place built : Cochin
Country built : India
Delivered : Apr ’07
Flag : Cyprus
Port of registry : Limasol
Owner : TBN
MEASUREMENT
Lenght oa : 71.90 m
Lenght bpp : 66.00 m
Breath moulded : 16.00 m
Depth moulded : 7.00 m
Draught max : 5.83 m
Correspondign DWT : 3250 mt
Gross tonnage GT : 2160
Net tonnage NT : 1036
Speed svc/max. : 14.3 knots
ISM-Responsible : TBN
CARGO CAPACITY
Deck cargo: 1600 t
Deck area: 680 m2
Deck strength: 5.0 t/m2
Fuel (gasoil) : 1000 m3
Liquid Mud : 970 m3
Brine: 390 m3
Drillwater / Ballast : 850 m3
Base Oil : 200 m3
Dry Bulk : 315 m3 (11250cuft)
Fresh Water : 840 m3
DISCHARGE RATE
Fuel discharge rate : 1 off 200 m3/h – 9 bar
Mud discharge rate : 2 off 75 m3/h – 18 bar
Brine discharge rate : 1 off 75 m3/h – 18 bar
Drillwater discharge rate : 1 off 200 m3/h – 9 bar
Dry bulk discharge rate : 2 off 27 m3/min – 5.6 bar
Base Oil discharge rate : 1 off 150 m3/h – 9 bar
Fresh Water discharge rate : 1 off 200 m3/h – 9 bar
MACHINERY / PROPULSION
Main Engines : 2×2725 bhp/ 825 rpm
Propellers : 2 off Ulstein CPP
Rudders : 2 off T1650
Total BHP : 5450 BHP
Bow Thrusters : 2 off 590 kW (800bhp)
Stern Thruster : 1 off 590 kW (800 bhp)
Generators : 2 x 1280 kW Shaft
Diesel Generators : 2 x 250 kW
Emergency Genset : 1 x 72 kW
Shore Connection : 440 v, 60 Hz
PERFORMANCE / CONSUMPTION
Max Speed / Consumption : 14.3 knots/ 20 t
Service Speed / Consumption : 11.0 knots/ 17 t
Economical Speed / Consumption : 9.0 knots/ 14 t
Standby Mode Consumption : 2-3 knots/ 4 t
Roll reduction system : 4 off ulstein passive roll red tanks
ACCOMODATION
Tween deck : 2 off 4-men cabins
Main deck : 1 off Change/ Washroom, 1 off Toilet room/ 1 off Spare room
F. C. deck : Galley and provision rooms, mess and day room, 1 off Laundry/ Drying room, 1 off Store room
A- deck : 5 off 1-bed cabins for crew, 1 off 4- men cabin/ 1 off Aircond room
B- deck : 5 off 1-bed cabins for officers/ crew
Bridge deck : Wheelhouse, Toilet room
DECK
Windlass : Brattvaag PH SNF 210-40
Tugger Winches : Brattvaag 2 off 10 t
Deck Crane : 3t/ 10-16 m TTS-GPT 115
Capstans : Brattvaag 2 off 8 t CMX2208
One off instrument air drier, one instrument air tank
Two off starting air compressors. Sperre HL2/ 105
Two off starting air bottles.
Two off Bilge/ fire pumps. All Weiler AEB1E0750-IE
One off Bilge water separator.
Four Reefer plugs. Two 440V + Two 220 V.
CO2 Fire Fighting System in engine room.
RESCUE EQUIPMENT
Fire Fighting equipment : FiFi 1
MOB Boats : 1 x Viking
Emergency Beacon : 2 Off JRC.VHF 406 MHz
Survival Suits : 22 persons
Life jackets : 22 persons
Life rafts : 4 Viking
NAVIGATION AND COMMUNICATION EQUIPMENT
Dynamic Position : DPS2
Radar 3 cm : JRC.JMA 9922 SXA
Radar 10 cm : JRC.JMA 9932 SXA
Radar Slave : One on aft bridge
Direction Finder : Johnn Lillie & Gillie LTD
Gyro : Tokimec Inc – TG – 8000
Autopilot : Tokimec Inc – Pr-6114A-22
Navtex : JRC.NCR – 333
Joystick : Poscon (RRM)
AIS : JRC.JHS – 182
Echo Sounder : JRC.JFE 585
Speed log : JRC.JLF 205
Satellite Navigator (GPS) : DGPS.JRC.JRL-77MK2
Wind Sensors : John Lillie & Gillie LTD
GMDSS Sea Area : A3
MF/HF Radia : JRC.JSS – 296
DSC Receiver : JRC.JHS – 32B
VHF 1 : JRC.JHS – 7
VHF 2 : JRC.JHS – 7
VHF 3 : JRC.JHS – 7
Portabel UHF : 4x JRC.JHS – 430
Mobil Telephone : Yes
Iridium : Inmarsat Fleet 77
Mini-M : Inmarsat JRC.JUE 85
Sat C 1 : JRC.JQE-3A
Intercom System : Yes
